Roof Lighting 4-fold
For Truggy, buggy, trucks, monster truck etc...
Available with 13mm or 19mm Reflektorengrößen.
Cool or warm
* * LED lighting of the Premium class: * *
-High quality materials
-High quality workmanship waiting for you...
Product Description:
No more soldering needed! | Ready for installation!
Envious looks are guaranteed!
Specification:
-Roof Lighting
4 Ultra Bright OLEDs (Xenon effect) or warm white LEDs 5mm luminous power of 20,000 MCD each
-4 pieces of silver-plated special reflectors
Reinforce the light and serve as an LED housing
(There are also headlight casings possible this you can find > here <)
-4 stray glasses in white for reflectors
Improvement of light scattering and serves as the reflector's glass
Selectable diameter 13mm or 19mm.. Please dial up!!
-Incl. connection optionally with:
-9 volt battery clip for 9 v Akkkus/battery
-Servo 4.5-6 Volts
-Bec Plug 4.5-9 Volt
Other plugs on request
(Battery not supplied!! Can be purchased here in the shop)
-Incl. small slide switch
Switch to ON/off
(Mounting dimensions: 12mm/Hole spacing: 19mm/Length: 23mm)
-Sufficient cable Length (ca: 40cm)
For laying for many models up to a body length of 70cm
(also shorter/longer possible > price on request)
Features:
* All solder have been neatly sealed with shrink tube,
Thus to 99% Splash water protected!!
Mounting tips:
The installation is simple....
-Drill holes
-Insert LEDs through
-Slide the reflector onto the LED
-led to 90 ° angle bend-attach LEDs with e.g. hot glue from below
-Slide the Reflektorglas onto the reflectors
Done... Turn on and the night ride can start!
We are at your disposal after the purchase, for questions about assembly etc. by e-mail!
Not the right one? Doesn't it fit? You want the lighting different?
No problem! Contact us! We manufacture according to customer requirements!!
,
Not allowed for the traffic. !
Do not look directly into the bright LEDs, can cause eye damage.
Images are sample images. The cars (bodies) are not offered here!!

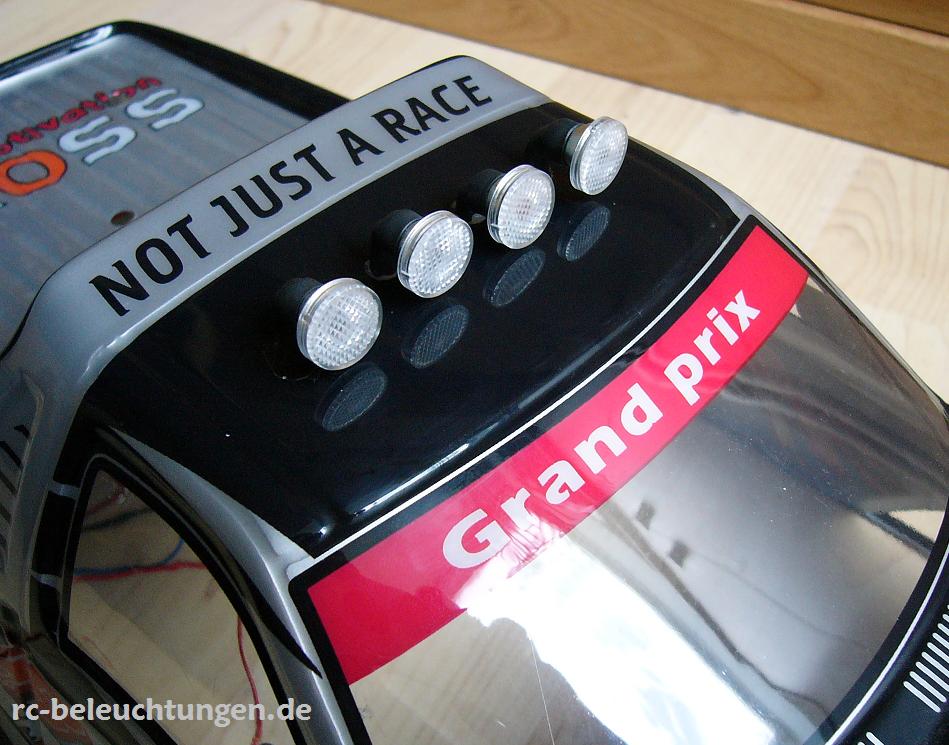

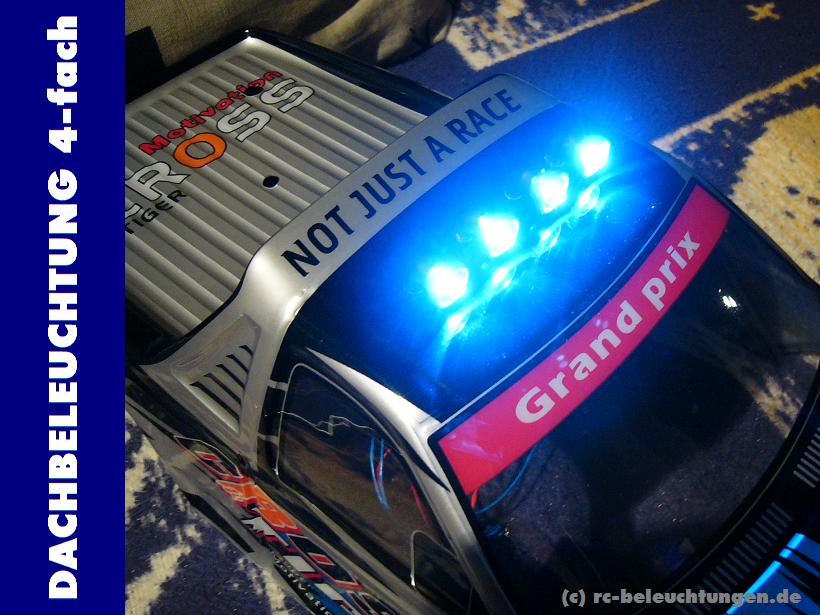

Sample photos....
